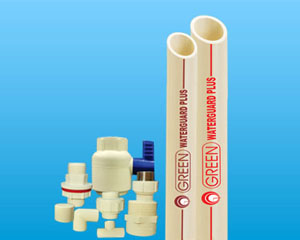

Waterguard Plus (Green CPVC Pipes and Fittings)

General

Chlorinated Poly (Vinyl Chloride) (CPVC) is a thermoplastic pipe and fitting material made with CPVC compounds meeting the requirements of ASTM Class 23447 as defined in ASTM Specification D1784.CPVC applications are for potable water distribution, corrosive fluid handling in industry, and fire suppression systems.

• Green CPVC Pipe & Fittings Are available in a complete range from 15mm to 50mm (1/2” to 2”)
• The CPVC (copper tube size) Pipes are available in SDR 11 and SDR 13.5. Whereas fittings are available in SDR 11 Pressure Class.
• Non corrosive and lifelong satisfaction
• Thread Insert in the transition fittings from brass.

GREEN CPVC PIPE & FITTINGS FOR HOT & COLD WATER PLUMBING SYSTEM PIPE SPECIFICATION

AS PER ASTM D-2846 & IS 15778:2007

Size	Nominal Size	OD	Wall Thickness 11		Wall Thickness 13.5
			Min	Max	Min	Max
1/2"	15	15.9	1.7	2.2	1.4	1.9
3/4"	20	22.2	2.0	2.5	1.7	2.2
1"	25	28.6	2.6	3.1	2.1	2.6
1.25"	32	34.9	3.2	3.7	2.6	3.1
1.5"	40	41.3	3.8	4.3	3.1	3.6
2"	50	54.0	4.9	5.5	4.0	4.6

FEATURES & BENEFITS GREEN CPVC PIPES

FEATURES & BENEFITS GREEN CPVC PIPES

GREEN CPVC PIPE & FITTINGS JOINING TECHNIQUES for easy and 100% leak proof installation

• Use only green CPVC solvent cement.
• Follow the solvent cement instructions.
• Avoid breathing vapors
• Use only with adequate ventilation
• Avoid frequent contact with skin
• Avoid contact with eyes
• Eliminate all ignition sources
• Store primer and solvent cement in the shade between 40°F and 110°F
• Close containers tight when not in use, and cover as much as possible during use
• Flush the system for a minimum of 10 minutes after pressure testing to remove trace amounts of solvents or other system components
