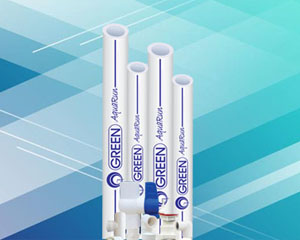

Aquarun (Green UPVC Pipes and Fittings)

General

The uPVC Pipes and Fittings are extremely useful and are most suitable for any kind of plumbing system with cold water because of their lead free nature. These pipes are easy to install and are cost-effective solutions for distribution of potable water. The pipes are technically superior and offer versatile performance for different usages. Designed as per the modern industrial standards, these are immune to any kind of harmful chemical reactions of acids and other organic chemicals.

Some of the prominent features of these pipes are:

• Green uPVC Pipe & Fittings Are available in a complete range from 15mm to 50mm (1/2” to 2”)
• The PVC Pipes are available in SCHD 40 & SCHD 80. Whereas fittings are available in SCHD 80 Pressure Class.
• Thread Insert in the transition fittings from brass.

GREEN uPVC PIPE & FITTINGS FOR COLD WATER PLUMBING SYSTEM PIPE SPECIFICATION

AS PER ASTM D-2846 & IS 15778:2007

Pressure Rating @23° C uPVC Schedule 40 Pipe

Nominal Size		OD		Average ID		Min Wall Thickness		Max Water Pressure
Inch	mm	Inch	mm	Inch	mm	Inch	mm	Kg/cm² @23° C	PSI @73° C	Kg/cm² @82° C	PSI @180° C
½	(15)	0.840	(21.34)	0.608	(15.44)	0.109	(2.77)	41.49	(590)	13.36	(190)
¾	(20)	1.050	(26.67)	0.810	(20.57)	0.113	(2.87)	33.76	(480)	10.54	(150)
1	(25)	1.315	(33.40)	1.033	(26.24)	0.133	(3.38)	31.63	(450)	9.84	(140)
1¼	(32)	1.660	(42.16)	1.364	(34.65)	0.140	(3.56)	25.67	(365)	7.73	(110)
1½	(40)	1.900	(48.26)	1.592	(40.44)	0.145	(3.68)	23.21	(330)	7.03	(100)
2	(50)	2.375	(60.33)	2.049	(52.04)	0.154	(3.91)	19.34	(275)	6.33	(90)
1Mpa = 10 kg/cm2 1 kg/cm2 = 14.223343 PSI

Pressure Rating @23° C uPVC Schedule 80 Pipe

Nominal Size		OD		Average ID		Min Wall Thickness		Max Water Pressure
Inch	mm	Inch	mm	Inch	mm	Inch	mm	Kg/cm² @23° C	PSI @73° C	Kg/cm² @82° C	PSI @180° C
½	(15)	0.840	(21.34)	0.528	(13.14)	0.147	(3.73)	59.77	(850)	18.28	(260)
¾	(20)	1.050	(26.67)	0.724	(18.36)	0.154	(3.91)	48.52	(690)	14.77	(210)
1	(25)	1.315	(33.40)	0.935	(23.75)	0.179	(4.55)	44.30	(630)	13.71	(195)
1¼	(32)	1.660	(42.16)	1.256	(31.90)	0.191	(4.85)	36.57	(520)	11.25	(160)
1½	(40)	1.900	(48.26)	1.476	(37.49)	0.200	(5.08)	33.05	(470)	10.20	(145)
2	(50)	2.375	(60.33)	1.913	(48.59)	0.218	(5.54)	28.13	(400)	8.80	(125)
1Mpa = 10 kg/cm2 1 kg/cm2 = 14.223343 PSI

FEATURES & BENEFITS GREEN UPVC PIPES

GREEN CPVC PIPE IS USED IN VARIOUS SEGMENTS

GREEN uPVC PIPE & FITTINGS JOINING TECHNIQUES for easy and 100% leak proof installation.

• Cut pipe straight (very important). This will allow pipe to bottom into the socket.
• Remove burr (shaving), use clean dry cloth or knife. Do not use abrasive material.
• Clean pipe and fitting & ensure no dirt, grease or any other foreign matter.
• Check dry fit.
• Apply a thin coat of Green Solvent cement into the fittings socket and a full even coat on the pipe.
• Insert pipe into the socket quickly while cement is still fluid (wet), if cement has dried, re-coat pipe and fitting. Twist pipe quarter turn, this will allow cement to cover any dry spot. Make sure pipe goes all the way to the bottom of the fitting.
• Hold pipe and fitting together (30 second) to make sure pipe does not push out.
• Wipe off excess cement with clean dry cloth.
• Allow cement to cure before pressure testing. Curing time is dependent upon temperature, humidity etc.
